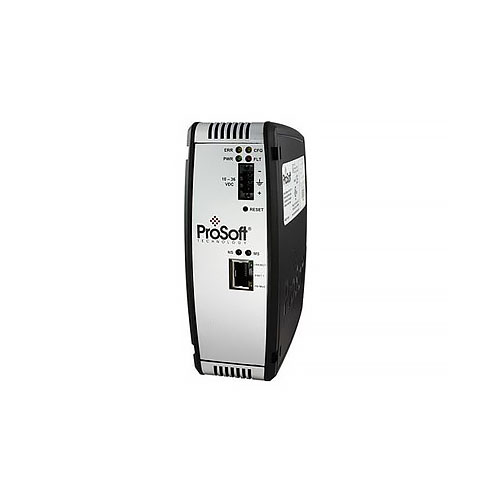

Ethernet/IP to Modbus TCP Gateway

PLX31-EIP-MBTCP

Ethernet/IP to Modbus TCP Gateway

PLX31-EIP-MBTCP

ProSoft Technology’s EtherNet/IP™ to Modbus® TCP/IP communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ enabled controllers or devices and Modbus® TCP/IP controllers or devices.

Our Modbus® TCP/IP driver features multiple client and server functionality, for faster data transmission. In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

A conformal coating option is available for this product.

  • Description

Description

EtherNet/IP to Modbus TCP/IP

ProSoft Technology’s EtherNet/IP™ to Modbus® TCP/IP communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ enabled controllers or devices and Modbus® TCP/IP controllers or devices.

Our Modbus® TCP/IP driver features multiple client and server functionality, for faster data transmission. In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

A conformal coating option is available for this product.

Features and Benefits

  • Data prioritization: Multiple I/O connections allow you to set RPIs for status and/or control data, optimizing Ethernet bandwidth
  • Includes an embedded EDS Add-On Profile, allowing for simplified integration and reduced commissioning time
  • Includes a SD card slot (SD card optional) for storing configuration files. This can be used for disaster recovery
  • ProSoft Discovery Service: This utility allows your PC to see the gateway and change its default IP address without being on the same subnet
  • Secure module configuration via module switch (v1.04 and greater)
  • Up to 10,000 16-bit registers can be used to exchange large amounts of data

Architectures

PLX31-EIP-MBTCP Schematic

NOTE:  All products are pre-order items
