CIP Protocol Hardening: Addressing the Foundation's Flaws

The very language of your industrial automation, CIP, was built for speed and reliability, not for defence. This foundational flaw leaves critical processes vulnerable to simple, yet devastating, protocol-level attacks that standard IT security cannot see.

Your Control System's Native Tongue is a Security Liability

The Industrial Protocol That Trusts Everyone and Verifies Nothing

CIP's inherent trust model means any device speaking the language is presumed legitimate and authorized.

When the Common Industrial Protocol was designed decades ago, cybersecurity threats existed only in theoretical discussions. The protocol's architects prioritized deterministic performance, interoperability, and reliability above all else. This design philosophy created a communications framework that assumes perfect network integrity and trustworthy participants. Today, this foundational trust becomes your greatest vulnerability. CIP contains no native mechanisms for authentication, integrity verification, or confidentiality. Every command, every setpoint change, every safety system interaction travels in plain text across your network, available for interception or manipulation by anyone with access to the wire.

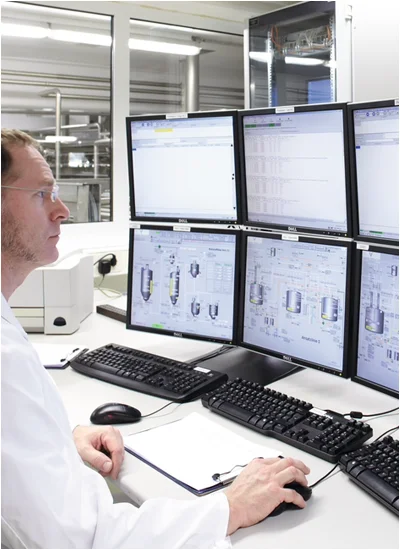

Eavesdropping Exposes Your Entire Operational Philosophy

Passive network monitoring reveals not just what you're producing, but exactly how you're producing it.

The complete lack of encryption in standard CIP implementations means that anyone capturing network traffic can reconstruct your entire operational process. They can identify which controllers manage critical safety functions, understand control loop relationships, and map communication patterns between HMIs and PLCs. This intelligence gathering requires no active attack - just passive observation. Using tools available to any network engineer, attackers can learn your operational rhythms, identify maintenance windows, and understand which process upsets cause the most significant disruptions. This reconnaissance phase often goes completely undetected while providing attackers with the blueprint for maximum impact.

Spoofing Attacks Manipulate Reality at the Protocol Level

CIP cannot distinguish between legitimate controller commands and malicious impersonations.

Because CIP lacks message authentication, any device that can communicate on the network can impersonate legitimate controllers or HMIs. An attacker can inject counterfeit I/O messages that override actual sensor readings, send false status information to operators, or issue stop commands to running equipment. These spoofing attacks don't require compromising user credentials or exploiting software vulnerabilities - they simply require understanding the protocol and having network access. The consequences range from production disruptions to safety incidents, all achieved by speaking the control system's native language with malicious intent.

Industrial Fibre Optics Provide Physical Layer Protection

Fibre's inherent characteristics defeat casual eavesdropping and contain protocol attacks geographically.

While industrial fibre optics cannot fix CIP's protocol-level flaws, they provide crucial physical layer security that copper networks cannot match. Fibre optic cables don't radiate electromagnetic signals that can be intercepted from adjacent locations, defeating many passive eavesdropping attempts. The physical difficulty of tapping fibre connections without detection creates a barrier against casual interception. Furthermore, fibre's immunity to ground potential differences and EMI ensures that protocol communications remain reliable even in electrically noisy environments. Deploying fibre for critical control network segments using media converters from suppliers like ATOP and Westermo establishes a foundation of physical security that complements higher-layer protections.

Deep Packet Inspection Adds Context-Aware Filtering

Protocol-aware firewalls understand CIP semantics, not just packets and ports.

Conventional firewalls see CIP traffic as generic Ethernet frames moving between IP addresses. Industrial firewalls with CIP inspection capabilities understand the protocol's structure and semantics. They can distinguish between implicit I/O messaging and explicit messaging, identify programming sessions versus routine data exchange, and recognize abnormal command sequences. This context awareness enables security policies that permit normal operational traffic while blocking potentially malicious activity. A firewall might allow routine setpoint changes from authorized HMIs while blocking controller stop commands from unexpected sources, maintaining operations while adding significant protection.

Network Segmentation Contains Protocol-Based Attacks

Strategic segmentation limits the blast radius of successful protocol exploitation.

By dividing your control network into functional zones separated by industrial firewalls, you limit the reach of any single compromised device. A breach in the supervisory network shouldn't automatically provide access to safety controllers or basic process control systems. This containment strategy acknowledges that some protocol-level attacks may succeed despite other protections. Proper segmentation ensures that even if attackers gain control of one network segment, they cannot pivot to more critical systems without overcoming additional security boundaries. This layered approach is fundamental to managing the risk inherent in CIP's design.

MACsec Encryption Protects Data in Motion Between Network Devices

Link-layer encryption secures CIP communications without requiring controller modifications.

For communications between network infrastructure devices - switches, routers, and firewalls - MACsec (Media Access Control Security) provides robust encryption and integrity verification. Deploying industrial switches from suppliers like Westermo that support MACsec ensures that all traffic between network devices is protected against eavesdropping and manipulation. This approach doesn't require changes to controllers or HMIs, making it practical for existing installations. While MACsec doesn't provide end-to-end encryption, it significantly raises the barrier against network-based attacks and protects against common attack techniques like man-in-the-middle attacks.

Anomaly Detection Identifies Abnormal Protocol Behavior

Behavioral monitoring catches attacks that signature-based systems miss.

Because many CIP-based attacks involve legitimate commands used maliciously, signature-based detection often fails. Anomaly detection systems establish baselines of normal protocol behavior - typical message frequencies, normal command sequences, expected communication partners - and generate alerts when deviations occur. A controller suddenly communicating with unfamiliar devices, unexpected programming sessions during production hours, or abnormal volumes of explicit messaging all indicate potential compromise. This behavioral approach complements other security measures by focusing on how the protocol is being used rather than what specific commands are being sent.

Secure Engineering Workstation Management Controls Programming Access

Unauthorized programming changes represent one of the most devastating CIP-based attacks.

The ability to download new logic to controllers represents the ultimate control system compromise. Securing engineering workstations through application whitelisting, strict access controls, and comprehensive auditing prevents unauthorized programming changes. Solutions that manage and monitor engineering asset access, including secure remote access platforms from suppliers like Secomea, ensure that programming activities are properly authorized and documented. By controlling who can make programming changes and when those changes can occur, organizations add a critical layer of protection against the most damaging forms of protocol manipulation.

CIP Security Extensions Offer Future Protection

Emerging standards bring native security to CIP, but widespread adoption remains years away.

The ODVA organization has recognized CIP's security limitations and developed CIP Security specifications that add encryption and authentication to the protocol. However, implementing these extensions requires controller and HMI hardware support that largely doesn't exist in installed systems. While new equipment purchases should prioritize CIP Security capabilities, most operational environments will rely on compensating controls for the foreseeable future. Understanding this roadmap helps organizations make informed decisions about equipment refresh cycles while maintaining adequate protection for existing infrastructure.

Comprehensive Monitoring Provides Situational Awareness

You cannot protect what you cannot see—protocol-aware monitoring illuminates CIP communications.

Complete visibility into CIP traffic patterns, device relationships, and command sequences provides the foundation for effective security management. Specialized monitoring tools from suppliers like Welotec can decode CIP communications, identify abnormal patterns, and provide detailed audit trails of control system activity. This visibility enables security teams to understand normal operations, detect deviations quickly, and investigate incidents effectively. When combined with security information and event management systems, CIP monitoring transforms raw network data into actionable security intelligence.

Implementation Strategy Prioritizes Risk-Based Hardening

Not all CIP communications require equal protection - focus efforts where consequences are most severe.

A phased implementation approach begins with protecting the most critical systems - safety controllers, critical process control loops, and systems with direct physical consequences. This risk-based prioritization ensures that security investments deliver maximum protection where it matters most. Subsequent phases can address less critical systems, refining the approach based on lessons learned during initial implementation. This strategy manages both cost and complexity while building organizational capability gradually and delivering measurable risk reduction at each stage.

Answered - Some Frequently Asked Questions

From Inherent Vulnerability to Managed Risk

The protocol-level flaws in CIP represent a fundamental design limitation, not an insurmountable barrier to security. Through strategic implementation of compensating controls - segmentation, monitoring, encryption, and access management - organizations can create effective protection despite the protocol's inherent weaknesses. This layered approach acknowledges that perfect security is unattainable while providing practical, defensible protection for critical operations.

Security is not about eliminating all risk, but about managing risk to acceptable levels. For CIP-based systems, this means creating multiple layers of protection that compensate for the protocol's design limitations while enabling operations to continue safely and reliably.

Ready to harden your CIP infrastructure against protocol-level attacks?

Contact a Throughput security specialist for a protocol assessment and receive our CIP Hardening Implementation Framework.

Subscribe to the Link & Layer | Smart Learning Hub for immediate access to our "CIP Security Hardening Guide" with configuration templates and policy examples.

Don't let foundational protocol flaws become your weakest link. Build defenses that understand and protect your control system's native language.

---
