Modbus TCP/IP Lite Communication Module for CompactLogix

MVI69L-MBTCP

Modbus TCP/IP Lite Communication Module for CompactLogix

MVI69L-MBTCP

The MVI69L-MBTCP Modbus TCP/IP module is ideal for smaller applications that utilize the CompactLogix L2 controllers. The module has an Add-on Profile and an Add-on Instruction to reduce commissioning time.

The MVI69L-MBTCP has a single Ethernet port for diagnostic and application data. It supports both Client and Server connectivity to interface with a variety of devices using the Modbus TCP/IP Protocol.

A conformal coating option is available for this product.

  • Description

Description

Modbus TCP/IP Lite Communication Module for CompactLogix

The MVI69L-MBTCP Modbus TCP/IP module is ideal for smaller applications that utilize the CompactLogix L2 controllers. The module has an Add-on Profile and an Add-on Instruction to reduce commissioning time.

The MVI69L-MBTCP has a single Ethernet port for diagnostic and application data. It supports both Client and Server connectivity to interface with a variety of devices using the Modbus TCP/IP Protocol.

Architectures

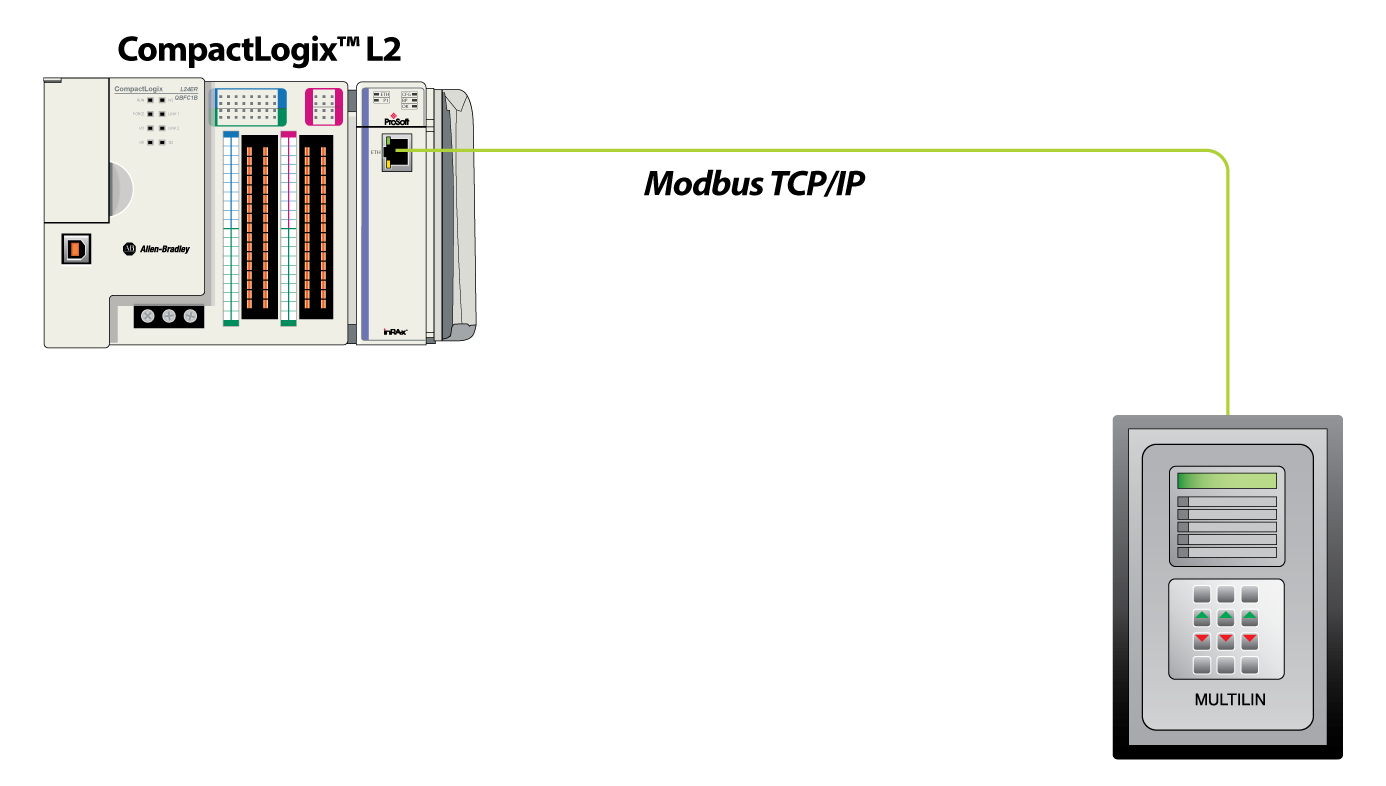

MVI69L-MBTCP

Features and Benefits

  • Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)
  • Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data
  • Add-on Profile support, improving integration in the CompactLogix System
  • Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health
  • Configuration backed up in CompactLogix project (ACD file)
  • Module acts as a co-processor reducing impact to PLC scan time
  • Supports up to 240 words of I/O data
  • Supports up to 10 Client connections and 2 Server connections (1 each for Server Ports 502 and 2000)
  • Supports Enron and Daniel style Floating point data implementation

Specifications

Configuration ProSoft Configuration Builder
I/O Size 240/240 – 16 bit integers
Floating Point Data Floating point data movement supported including configurable support for Enron, Daniel®, and other implementations
Modbus Function Codes Supported 1: Read Coil Status
2: Read Input Status
3: Read Holding Registers
4: Read Input Registers
5: Force (Write) Single Coil
6: Preset (Write) Single Holding Register
8: Diagnostics (Slave Only, Responds to Subfunction 00)
15: Force( Write) Multiple Coils
16: Preset (Write) Multiple Holding Registers
17: Report Slave ID (Slave Only)
22: Mask Write Holding Register (Slave Only)
23: Read/Write Holding Registers (Slave Only)

NOTE:  All products are pre-order items

More:  Specifications, downloads & certifications
