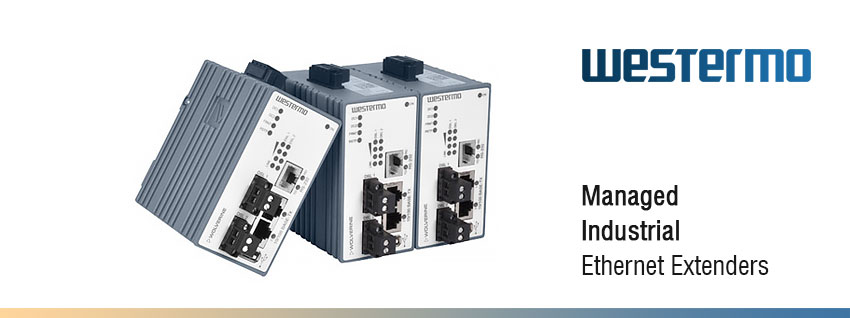

Managed Extenders

Managed Extenders

Extend your managed network with the Wolverine.

The Westermo Wolverine series of industrial Ethernet extenders allow cost-effective Ethernet networks to be created over long distances, at high data rates. The SHDSL technology employed makes it possible to reuse many types of pre-existing cabling which in turn can lead to considerable financial savings. With support for multidrop networks, redundant rings, legacy serial connections and layer 3 routing functions, our range of Ethernet extenders can meet any demand your application requires.

  • You've just added this product to the cart:

    Industrial Ethernet Extender

    DDW-142

    DDW-142 Industrial Ethernet Extender
    DDW-142 Industrial Ethernet Extender

    Industrial Ethernet Extender

    DDW-142

    Westermo’s Ethernet extender technology based on SHDSLmakes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems.The Wolverine DDW-142 allows effective Ethernet networks to be created over long distances (up to 15 km/9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded” this rate can be doubled up to 30.6 Mbit/s. The integral switch allows 2 Ethernet devices to be attached and an RS-232 port allows for a legacy piece of equipment to be incorporated into the IP network.

  • You've just added this product to the cart:

    Industrial Ethernet Extender

    DDW-142-485

    DDW-142-485 Industrial Ethernet Extender
    DDW-142-485 Industrial Ethernet Extender

    Industrial Ethernet Extender

    DDW-142-485

    Industrial Ethernet Extender
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x 4-position detachable screw terminal for RS-422/485 port

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings when installing new systems. The Wolverine DDW-142-485 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Industrial Ethernet Extender

    DDW-142-12VDC

    DDW-142-12VDC Industrial Ethernet Extender
    DDW-142-12VDC Industrial Ethernet Extender

    Industrial Ethernet Extender

    DDW-142-12VDC

    Industrial Ethernet Extender with 12VDC support
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-142 allows effective Ethernet networks to be created over long distances (up to 15 km/9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Industrial Ethernet extender with bypass relay

    DDW-142-12VDC-BP

    DDW-142-12VDC-BP Industrial Ethernet Extender
    DDW-142-12VDC-BP Industrial Ethernet Extender

    Industrial Ethernet extender with bypass relay

    DDW-142-12VDC-BP

    Industrial Ethernet Extender with bypass relay
    2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
    2 x 2-position detachable screw terminal
    1 x RJ-45, 300 bit/s – 115.2 kbit/s

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. DDW-142-12VDC-BP allows effective Ethernet networks to be created over long distances (up to 15 km/9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Advanced Industrial Ethernet Extender

    DDW-242

    DDW-242 Advanced Industrial Ethernet Extender
    DDW-242 Advanced Industrial Ethernet Extender

    Advanced Industrial Ethernet Extender

    DDW-242

    Advanced Industrial Ethernet Extender
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-242 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Advanced Industrial Ethernet Extender

    DDW-242-485

    Advanced Industrial Ethernet Extender

    DDW-242-485

    Advanced Industrial Ethernet Extender
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x 4-position detachable screw terminal for RS-422/485 ports

    Westermo Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings when installing new systems. The Wolverine DDW-142-485 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Advanced Industrial Ethernet Extender

    DDW-242-12VDC

    Advanced Industrial Ethernet Extender

    DDW-242-12VDC

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-242 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Advanced Industrial Ethernet Extender with bypass relay

    DDW-242-12VDC-BP

    Advanced Industrial Ethernet Extender with bypass relay

    DDW-242-12VDC-BP

    Advanced Industrial Ethernet Extender with bypass relay
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s

    DDW-242-12VDC-BP

    Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-242 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable.

  • You've just added this product to the cart:

    Redundant Ring Ethernet Extender

    DDW-225

    Redundant Ring Ethernet Extender

    DDW-225

    Redundant Ring Ethernet Extender
    4x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports

    The Wolverine DDW-225 allows effective Ethernet networks to be created over long distances (up to 15 km) at data rates up to 15.3 Mbit/s. The SHDSL technology makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings. Dependent on cable characteristics, distances up to 15 km (9.3 mi) can be achieved.

  • You've just added this product to the cart:

    Ethernet Extender with serial support

    DDW-226

    Ethernet Extender with serial support

    DDW-226

    Ethernet Extender with serial support
    4x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s

    The Wolverine DDW-226 allows effective Ethernet networks to be created over long distances (up to 15 km) at data rates up to 15.3 Mbit/s. The SHDSL technology makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings.

  • You've just added this product to the cart:

    EX approved Industrial Ethernet Extender

    DDW-142-EX

    DDW-142 Industrial Ethernet Extender
    DDW-142 Industrial Ethernet Extender

    EX approved Industrial Ethernet Extender

    DDW-142-EX

    EX approved Industrial Ethernet Extender
    2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
    2x 2-position detachable screw terminals for SHDSL ports
    1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s

    The Wolverine DDW-142-EX is an Industrial Ethernet Extender, powered by the Westermo WeOS network operating system. Independently tested for IECEX and ATEX by Baseefa the Wolverine is the perfect solution for hazardous area applications in any part of the world.
