WLAN Aps/Bridges/Clients

WLAN Aps/Bridges/Clients

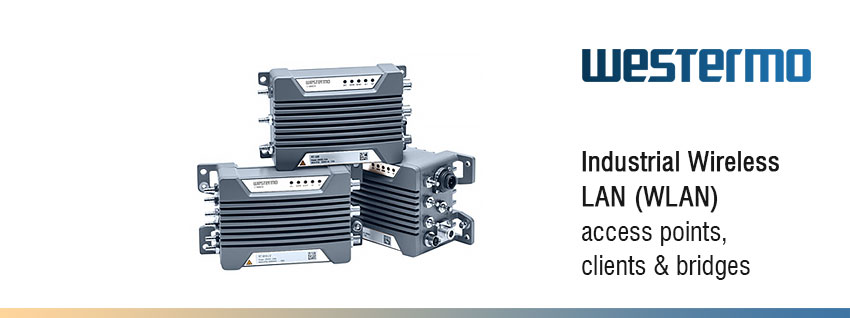

Compact and versatile WLAN devices for reliable wireless transmission in harsh industrial and outdoor environments.

Westermo’s range of industrial wireless local area network (WLAN) devices have been designed to ensure reliable, continuous, high-speed data communications in extreme operational environments, supporting applications such as communication based train control, monitoring of track conditions, and providing on-board video surveillance and passenger hotspots.

The WLAN devices are approved to the EN 50121-4 standard for trackside applications as well as the EN 50155 standard for onboard applications. In addition to rail applications, the WLAN range is very well suited for deployment in other industries with severe operating conditions and harsh environments, such as mining.

  • You've just added this product to the cart:

    EN 50155 LTE and WLAN Router

    IBEX-RT-630

    IBEX-RT-630 EN 50155 LTE and WLAN Router
    Hot
    IBEX-RT-630 EN 50155 LTE and WLAN Router

    EN 50155 LTE and WLAN Router

    IBEX-RT-630

    EN 50155 LTE and WLAN Router
    2×2 MIMO LTE-A Cat-12
    3×3 MIMO WLAN 2.4/5 GHz
    1 x GNSS
    2 x SIM card slots
    2 x Gbps ports, M12 connectors
    Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

    The Ibex-RT-630 is a mobile LTE and WLAN router for onboard usage in trains, trams, locomotives and busses. The Ibex-RT-630 offers outstanding performance and rugged internet connectivity back-up to enable hybrid train-to-ground installations with a single device. The Mobile Communication Gateway (MCG) router is designed to withstand the tough onboard environmental conditions and can be remotely managed using web browser or SNMP management tools. The MCG provides advanced firewall functionalities and high-performance VPN connectivity.

  • You've just added this product to the cart:

    EN 50155 WLAN

    IBEX-RT-220

    Ibex-RT-220 EN 50155 WLAN 2x2 Client/Bridge/Access Point
    Ibex-RT-220 EN 50155 WLAN 2x2 Client/Bridge/Access Point

    EN 50155 WLAN

    IBEX-RT-220

    EN 50155 WLAN 2×2 Client/Bridge/Access Point
    2×2 MIMO
    2 x QMA compatible antenna connectors
    2 x 100 Mbps ports, M12 connectors
    Power feed: 24 VDC or 72 to 110 VDC

    The Westermo Ibex-RT-220 is a Wireless LAN Node for on-board and stationary applications. It ensures reliable connection for applications such as video transmission and TCMS, especially useful for transparent inter-consist links (ICL) with automatic reconfiguration.

    The Ibex-RT-220, along with the application-specific ICL antenna, is designed to withstand the tough environment on-board trains, exposing equipment to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

  • You've just added this product to the cart:

    EN 50155 WLAN

    IBEX-RT-310

    IBEX-RT-310 EN 50155 WLAN Access Point
    IBEX-RT-310 EN 50155 WLAN Access Point

    EN 50155 WLAN

    IBEX-RT-310

    EN 50155 Access Point
    3×3 MIMO
    3 x QMA compatible antenna connectors
    2 x Gbps ports, M12 connectors
    Power feed 24 VDC

    The Westermo Ibex-RT-310 is a Wireless LAN Access Point for installation in harsh environments, for on-board and stationary applications. It ensures reliable, high speed data and video transmission and can be used as a passenger hotspot or as an access point for connecting wireless industrial clients.

    The Ibex-RT-310 is designed to withstand the though environment on-board trains exposing the switch to constant vibration, extreme temperatures, humidity and a demanding electrical environment.

  • You've just added this product to the cart:

    EN 50155 WLAN

    IBEX-RT-320

    EN 50155 WLAN

    IBEX-RT-320

    EN 50155 WLAN 3×3 Client/Bridge/Access Point
    3×3 MIMO
    3 x QMA compatible antenna connectors
    2 x Gbps ports, M12 connectors
    Power feed: 24 VDC or 72 to 110 VDC

    The Westermo Ibex-RT-320 is a Wireless LAN Node for on-board and stationary applications. It ensures reliable, high-speed data for applications such as video transmission, useful for instance in train to ground and inter-consist communication.

    The Ibex-RT-320, along with the application-specific ICL antenna, is designed to withstand the tough environment on-board trains, exposing the device to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

  • You've just added this product to the cart:

    EN 50155 WLAN Dual Radio Access Point

    IBEX-RT-610

    EN 50155 WLAN Dual Radio Access Point

    IBEX-RT-610

    EN 50155 WLAN Dual Radio Access Point
    4×4 MU-MIMO 5 GHz
    2×2 MIMO 2.4 GHz
    6 x QMA compatible antenna connectors
    2 x Gbps ports, M12 connectors
    Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

    The Ibex-RT-610 consists of concurrent dual-band 802.11ac Wave2 Wireless LAN Access Points for on-board and stationary applications. They ensures reliable, high-speed data, airtime fairness, band steering, and client steering, and can be used as passenger hotspots or as access points for connecting wireless industrial clients.

    The Ibex-RT-610 is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

  • You've just added this product to the cart:

    Industrial IEC 61850-3 Cellular Router

    Merlin-4605-T4-DI6-DO2-LV

    Merlin-4605-T4-DI6-DO2-LV
    Hot
    Merlin-4605-T4-DI6-DO2-LV

    Industrial IEC 61850-3 Cellular Router

    Merlin-4605-T4-DI6-DO2-LV

    Industrial IEC 61850-3 Cellular Router
    LTE Cat 4
    Trusted Platform Module
    4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
    6 x Digital input
    2 x Relay contact output
    2 x Mini SIM card slot
    1 x GPS SMA female antenna connector

    The Merlin 4600 series of versatile cellular routers provide high speed data network connectivity for demanding industrial, smart grid and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.

  • You've just added this product to the cart:

    Industrial IEC 61850-3 Cellular Router

    Merlin-4605-T4-LV

    Merlin-4605-T4-LV Industrial IEC 61850-3 Cellular Router
    Hot
    Merlin-4605-T4-LV Industrial IEC 61850-3 Cellular Router

    Industrial IEC 61850-3 Cellular Router

    Merlin-4605-T4-LV

    Industrial IEC 61850-3 Cellular Router
    LTE Cat 4
    Trusted Platform Module
    4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
    2 x Mini SIM card slot
    1 x GPS SMA female antenna connector

    The Merlin 4600 series of versatile cellular routers provide high speed data network connectivity for demanding industrial, smart grid and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.

  • You've just added this product to the cart:

    Industrial IEC 61850-3 Cellular Router

    Merlin-4607-T4-S2-LV

    Merlin-4607-T4-S2-LV
    Hot
    Merlin-4607-T4-S2-LV

    Industrial IEC 61850-3 Cellular Router

    Merlin-4607-T4-S2-LV

    Industrial IEC 61850-3 Cellular Router
    LTE Cat 4
    Trusted Platform Module
    4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
    2 x Mini SIM card slot
    2 x Serial port configurable as RS232 or RS485, RJ-45
    1 x GPS SMA female antenna connector

    The Merlin 4600 series of versatile cellular routers provide high speed data network connectivity for demanding industrial, smart grid and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.

  • You've just added this product to the cart:

    Industrial IEC 61850-3 Cellular Router

    Merlin-4609-F2G-T4-S2-DI6-DO2-LV

    Merlin-4609-F2G-T4-S2-DI6-DO2-LV Industrial IEC 61850-3 Cellular Router
    Hot
    Merlin-4609-F2G-T4-S2-DI6-DO2-LV Industrial IEC 61850-3 Cellular Router

    Industrial IEC 61850-3 Cellular Router

    Merlin-4609-F2G-T4-S2-DI6-DO2-LV

    Industrial IEC 61850-3 Cellular Router
    LTE Cat 4
    Trusted Platform Module
    4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
    2 x 1000 Mbit/s SFP
    6 x Digital input
    2 x Relay contact output
    2 x Mini SIM card slot
    2 x Serial port configurable as RS232 or RS485, RJ-45
    1 x GPS SMA female antenna connector

    The Merlin 4600 series of versatile cellular routers provide high speed data network connectivity for demanding industrial, smart grid and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.

  • You've just added this product to the cart:

    Infrastructure WLAN Access Point

    IBEX-RT-280

    IBEX-RT-280 Infrastructure WLAN Access Point
    IBEX-RT-280 Infrastructure WLAN Access Point

    Infrastructure WLAN Access Point

    IBEX-RT-280

    Infrastructure WLAN Access Point
    2 x 2 MIMO with separated monitoring interface
    3 x N-type antenna connectors
    2 x 100 Mbps fibre optic ports with ODC-2 connectors
    1 x 1 Gbps port, M12 connector
    Power feed 100-240 VAC

    Ibex-RT-280 is a wireless LAN infrastructure access point for industrial or wayside network infrastructure. With its dual fibre Ethernet ports, it can be directly installed as part of a FRNT ring or used in a daisy chained setup.

    Ibex-RT-280 is designed to withstand the tough environment in, for instance, wayside applications, exposing the access point to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

  • You've just added this product to the cart:

    Trackside WLAN Infrastructure Access Point

    IBEX-RT-370

    IBEX-RT-370 Trackside WLAN Infrastructure Access Point
    IBEX-RT-370 Trackside WLAN Infrastructure Access Point

    Trackside WLAN Infrastructure Access Point

    IBEX-RT-370

    WLAN Infrastructure Access Point
    3×3 MIMO
    3 x QMA compatible antenna connectors
    1 x Gbps port, M12 connector
    1 x Gbps fibre optic port, ODC-2 connector
    Power feed 100-240 VAC
    2 x Gbps ports, M12 connectors
    Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

    Ibex-RT-370 is a Wireless LAN Infrastructure Access Point for industrial or trackside network infrastructure. It ensures reliable, continuous high-speed connection to industrial wireless clients.

    Ibex-RT-370 is designed to withstand the tough environment in, for instance, trackside applications, exposing the access point to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

  • You've just added this product to the cart:

    Automotive Wireless Router

    CyBox RT 2-A

    CyBox-RT-2-A Automotive Wireless Router
    CyBox-RT-2-A Automotive Wireless Router

    Automotive Wireless Router

    CyBox RT 2-A

    Automotive Wireless Router with LTE CAt-6 and WI-FI 5
    3 x 3 MIMO
    10 x QLS antenna connectors
    5 x 1 Gb ETH, RJ45 ports
    1 x GNSS
    Power feed 12 to 24 VDC

    The CyBox RT 2-A is a robust wireless communication router for automotive applications. It offers stable, secure, and broadband LTE connections for data exchange via vehicle-to-ground connections and high-speed internet. The device hosts multiple LTE interfaces for parallel LTE channel use and thus maximized throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, as well as five Gigabit Ethernet ports to attach the device to a backbone network. Country-specific LTE and Wi-Fi standards are adopted for worldwide use in every type of vehicle.
