The RLX2-IFH9E is user configurable as a master, repeater, and remote radio. It provides virtual peer-to-peer packet switching and network optimization using advanced Smart Switch technology. Combined with an industry leading high-speed transmitter, the RLX2-IFH9E is ideal for applications requiring fast and reliable communications at long distances.

The RLX2-IFH9E is quickly configured using the included, graphical ControlScape software. An OPC server software is also included and allows users to monitor radio network health with any OPC client based HMI software.

The RLX2-IFH9E employs proprietary frequency hopping algorithms and 128 bit AES encryption algorithm approved by most governments for critical networks.



[Limited Availability]

Add to Wishlist

Description

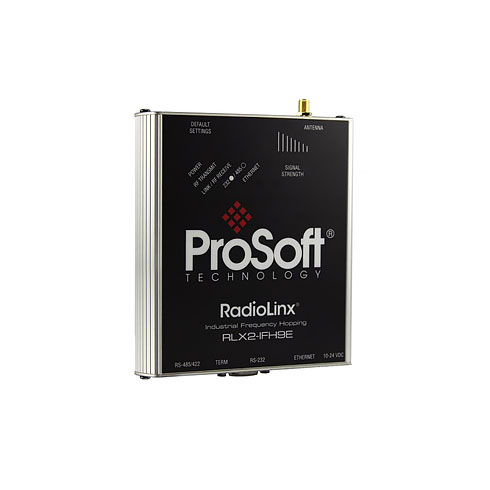

Industrial Frequency Hopping 900 MHz Ethernet (RLX2-IFH9E)

The RLX2-IFH9E is user configurable as a master, repeater, and remote radio. It provides virtual peer-to-peer packet switching and network optimization using advanced Smart Switch technology. Combined with an industry leading high-speed transmitter, the RLX2-IFH9E is ideal for applications requiring fast and reliable communications at long distances.

The RLX2-IFH9E is quickly configured using the included, graphical ControlScape software. An OPC server software is also included and allows users to monitor radio network health with any OPC client based HMI software.

The RLX2-IFH9E employs proprietary frequency hopping algorithms and 128 bit AES encryption algorithm approved by most governments for critical networks.

Features and Benefits

  • 1.1 Mbps RF data rate at up to 30+ miles with line-of-sight (LOS)
  • Smart Switch technology provides true peer-to-peer connectivity and optimizes performance
  • Serial device support via serial-to-serial tunneling or serial TCP/UDP encapsulation
  • Longer wavelength of unlicensed 900 MHz for superior wireless signal propagation
  • Up to one watt transmit power for long distance
  • Metal enclosure, industrial operating temperatures, vibration and shock resistant
  • Certification for use in hazardous locations
  • Proprietary frequency hopping algorithms (not detectable by Wi-Fi scanners)
  • 128 bit AES Encryption
  • Graphical representation of network for configuration and diagnostics
  • Advanced diagnostics including temperature and signal quality
  • Includes OPC Server for HMI-based RF network diagnostics

Configuration

The ControlScape FH application provides a graphical representation of your RLX2-IFH radio network, allowing you to easily configure the radios and monitor their performance from anywhere in the network. ControlScape can be used to support configuration and installation as well as provide long-term monitoring of system performance.

Architectures

RLX2-IFHxE-Architectures

Specifications

Frequency 900-928 MHz
Protocols All standard IEEE 802.3 protocols
Security 128 bit AES encryption
Network Topology Point-to-point, point-to-multipoint, store and forward repeater. Smart Switch packet switching for virtual peer-to-peer communications.
Error Detection 32 bit CRC, ARQ (Automatic Resend Query)
Radio Type Frequency Hopping Spread Spectrum
Transmit Power (Programmable) 100 mW to 1W (Programmable)

20 dBm to 30dBm (Programmable)
Channel data rates (Programmable) 1.1 Mbps or 345 kbps (Programmable)
Receiver Sensitivity (Typical) 1.1 Mbps: -97 dBm @ 10-6 BER

345 kbps: -104 dBm @ 10-6 BER
Outdoor Range 30+ miles pt-pt with high gain directional antennas and
RF line-of-sight

NOTE:  All products are pre-order items
