mmWave Trackside Rail Node
Oryx-7321
EN 50155 mmWave train-top and train node
Up to 3 Gbps wireless throughput between train and track
IP66 and -25° to +55°C ambient temperature range supported
Power feed 20 to 48 VDC
Westermo’s mmWave solution for high-speed transport provides continuous, on-the-move multi-gigabit connectivity between trackside and train for on-board services including Passenger Internet Access, CCTV upload and data exchange.
- Description
Description
EN 50155 mmWave trackside distribution node
Features
✓ Compact, multi-gigabit train-top and train node
• Data rates up to 3 Gbps per radio
• Optimized wireless connectivity using integrated phased array antennas
• Compact IP66 design
✓ Designed for on-board deployment
• Easy installation of self-cleaning train-top mounting
• Single cable connecting train top unit with CPU
• EN 50155 certified
✓ mmWave connectivity with unlicensed bands
• Uses 57-71 GHz mmWave unlicensed bands
• Supports train speeds up to 500 kmph
• Typical range of 1 Gbps at 1 km
Summary
Westermo’s mmWave solution for high-speed transport provides continuous, on-the-move multi-gigabit connectivity between trackside and train for on-board services including Passenger Internet Access, CCTV upload and data exchange.

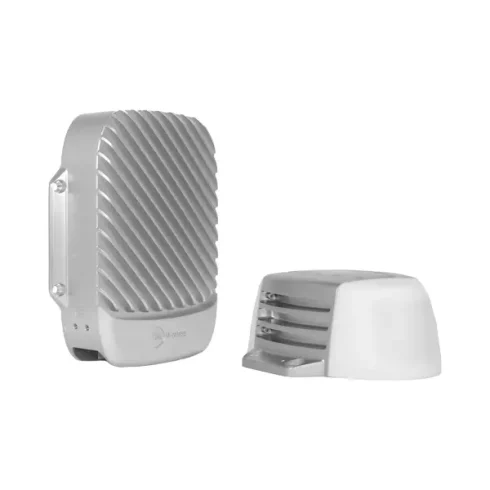

The Oryx-7321 node is qualified for onboard deployment with extended service life and low maintenance. This node comes with three units. A train top unit, a cable and an in-train CPU. The compact Oryx-7321 is EN 50155 certified for onboard installation.
The Oryx-7321 onboard unit works together with Oryx-7322 trackside unit to form a multi-gigabit link between train and trackside. Both feature two radios which work together to maintain an aggregated data throughput of between 1-4 Gbps per train, continuously and at speed.
Trackside and train units include the RWM6050 dual modem IC with HYDRA technology developed by Blu Wireless, two-sector electronic phased array antennas operating in 60 GHz unlicensed spectrum, and a quad-core ARM Network Processor. The units support flexible network and edge application configuration in a standard and secure Linux environment.
The Oryx-7321 is equipped with the latest cybersecurity features and updates. The links have AES128 encryption in the nominal configuration and AES256 in the extended range configuration.
NOTE: All products are pre-order items
