EtherNet/IP to PROFINET Device Gateway for Dual Subnets

PLX32-EIP-PND

EtherNet/IP to PROFINET Device Gateway for Dual Subnets

PLX32-EIP-PND

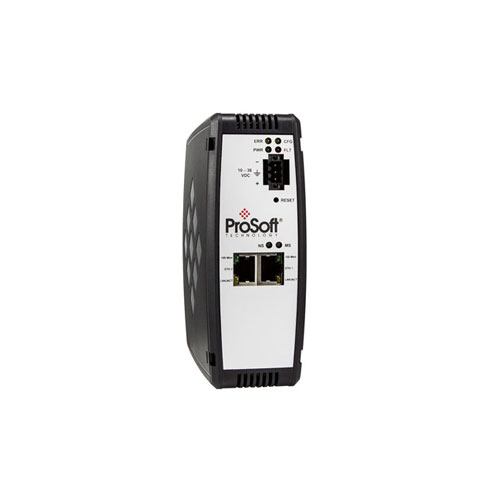

The EtherNet/IP to PROFINET device gateway offers bi-directional data transfers between a PROFINET Controller and EtherNet/IP networks. The PLX32-EIP-PND gateway is a stand-alone DIN-rail mounted unit that provides two Ethernet ports, with each port using a different subnet.

The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup. The EtherNet/IP Driver uses Class 1 I/O connections or Class 3 Message instructions. The PROFINET driver operates as a PROFINET Class A device.

A conformal coating option is available for this product.

  • Description

Description

EtherNet/IP to PROFINET® Gateway for dual subnets

The EtherNet/IP to PROFINET device gateway offers bi-directional data transfers between a PROFINET Controller and EtherNet/IP networks. The PLX32-EIP-PND gateway is a stand-alone DIN-rail mounted unit that provides two Ethernet ports, with each port using a different subnet.

The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup. The EtherNet/IP Driver uses Class 1 I/O connections or Class 3 Message instructions. The PROFINET driver operates as a PROFINET Class A device.

A conformal coating option is available for this product.

Architectures

PLX32-EIP-PND Schematic

Features and Benefits

  • ODVA Approved
  • PROFINET v2 certification with PROFINET Class A compliance
  • EtherNet/IP and PROFINET certifications ensure the device is compatible with their respective network
  • Field-tested with multiple PROFINET controllers from multiple vendors
  • Remotely view and diagnose EtherNet/IP and PROFINET networks
  • Embedded EDS AOP provided to allow for seamless integration to Studio 5000 and RSLogix 5000
  • Using EtherNet/IP I/O connections, no ladder programming is required
  • Multiple I/O connections to allow for increased throughput
  • Secure module configuration via module switch (v1.04 and greater)
  • Up to 10,000 16-bit registers can be used to exchange large amounts of data

Specifications

EtherNet/IP™ Specifications

Specification Description
Number of Class 3 Server Connections 5
Supported PLC Types PLC2, PLC5, SLC, CLX, CMPLX, MICROLX
Supported Message Types PCCC and CIP
Class 3 Client Connections Connected – 2

Unconnected – 1

Number of Class 1 I/O Connections 8
I/O connection sizes in/out 496/496 bytes
Max RPI time 5 ms per connection
CIP Services Supported 0x4C – CIP Data Table Read

0x4D – CIP Data Table Write

Command List Support for 100 commands per Client, each configurable for command type, IP address, register to/from addressing and word/bit count.
Command Sets PLC-2/PLC-3/PLC5 Basic Command Set

PLC5 Binary Command Set

PLC5 ASCII Command Set

SLC500 Command Set

PROFINET Specifications

Specification Description
Driver Type Class A Device
PROFINET I/O Data 1440 bytes IN, 1440 bytes OUT
Exchange Types Cyclic Real-time (RT) and Acyclic Data

Environmental

Specification Description
Power Supply 24 VDC nominal
10 to 36 VDC allowed
Positive, Negative, GND Terminals
Current Load 24 VDC nominal @ 300 mA

10 to 36 VDC @ 610 mA maximum

Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 80°C (-40°F to 176°F)
Relative Humidity 5% to 95% RH with no condensation
Shock IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational)

IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operation)

Vibration IEC 60068-2-6; 5G @ 10Hz to 150Hz
Dimensions
(H x W x D)
5.38 x 1.99 x 4.38 in
13.67 x 5.05 x 11.13 cm
Ethernet Ports (2) 10/100Mbit RJ45 Connector Electrical Isolation 1500 Vrms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991
Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
Shipped With Each Unit 2.5 mm screwdriver
J180 Power Connector

NOTE:  All products are pre-order items
