EN 50155 5G and Wi-Fi 5 Wave 2 Router

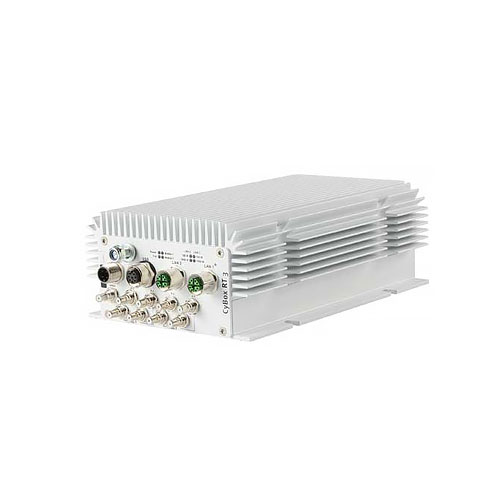

CyBox RT 3-W
Hot

EN 50155 5G and Wi-Fi 5 Wave 2 Router

CyBox RT 3-W

EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 x GNSS
Power feed 24 to 110 VDC

The CyBox RT 3-W is a member of the CyBox family – robust wireless communication routers for railway applications. It offers stable, secure, and broadband 5G/LTE connections for train-to ground communication and high-speed internet. The device hosts up to two 5G interfaces for parallel 5G channel use and thus maximized throughput or one Wave 2 interface combined with an 5G interface to boost network efficiency and connect to client devices such as mobile phones. Country-specific 5G/LTE/Wi-Fi standards are adopted for worldwide use in every type of train.

  • Description

Description

EN 50155 5G and Wi-Fi 5 Wave 2 Router

Features

✓ Railway router with 5G and Wi-Fi 5 Wave 2

  • Up to two 5G interfaces for channel-bundled WAN access
  • Up to 4 SIM cards for each 5G interface
  • Optional Wave 2 interface with 4×4 MU-MIMO with up to 1733 Mbps

✓ High speed connectivity

  • Dual 1 Gigabit Ethernet on M12 X-coded connectors
  • Optional high-speed Ethernet 2.5 GBaseT copper or10 GBaseT optical
  • Optional bypass relays
  • Power over Ethernet (PoE+) according to IEEE 802.3at

✓ Designed and built for onboard rail applications

  • Integrated GNSS
  • Ultra-wide-range power supply 24 to 110 VDC
  • Built-in cybersecurity
  • Maintenance-free design
  • -40 °C to +70 °C operating temperature
  • EN 50155 compliant



Certification

NOTE:  All products are pre-order items

Technical Specs & Downloads
