The PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation® CompactLogix / MicroLogix® processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data exchange with CompactLogix / MicroLogix processors.

  • Description

Description

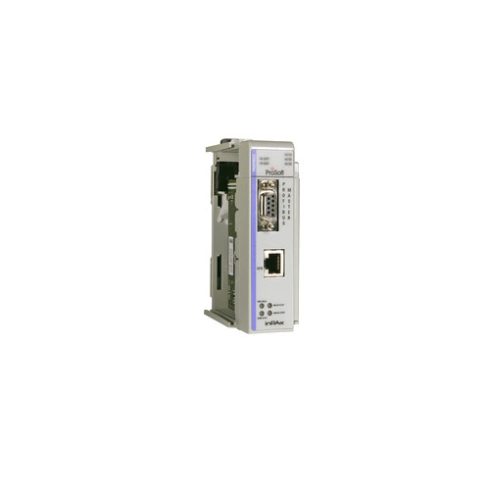

PROFIBUS DP-V1 Master Network Interface Module for CompactLogix

MVI69-PDPMV1



The PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation® CompactLogix / MicroLogix® processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data exchange with CompactLogix / MicroLogix processors.

The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.

The module acts as an input/output module between the PROFIBUS network and the CompactLogix / MicroLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.



Features and Benefits

  • Single-slot – 1769 backplane compatible
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
  • Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included
  • Configuration data obtained from ProSoft Configuration Builder Software, which defines the PROFIBUS network, and then downloads the configuration to the module using the serial port of the PC
  • Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x



Applications

With the growing usage of the PROFIBUS DPV1 protocol in the industrial marketplace, this product has a wide variety of application uses. Industries that use this technology include:

  • Power and distribution applications
  • Petrochemical
  • Water and Gas Applications
  • SCADA and DCS applications





NOTE:  All products are pre-order items

Active Mature: Product is fully supported, but a newer product or family exists.
For new applications use the ILX69-PBM

More:  Specifications, downloads & certifications
