DF1 Messaging Module

The DF1 messaging module can be used in applications requiring DF1 to Logix messaging. The module can be used to communicate between PC’s or PLC’s using DF1™ or EtherNet/IP™.

Have a bunch of MicroLogix or SLC’s in your water or waste water treatment facility? DF1 Radio Modem protocol can be used for migrating old SLC’s and MicroLogix PLC’s to newer Logix based platforms over leased line modems. Start migrating the legacy equipment to new Logix based equipment with the help of ProSoft Technology’s DF1 Messaging Module.

Architectures

PLX51-DF1-MSG Schematic-1

___

PLX51-DF1-MSG Schematic-2

___

PLX51-DF1-MSG Schematic-3

___

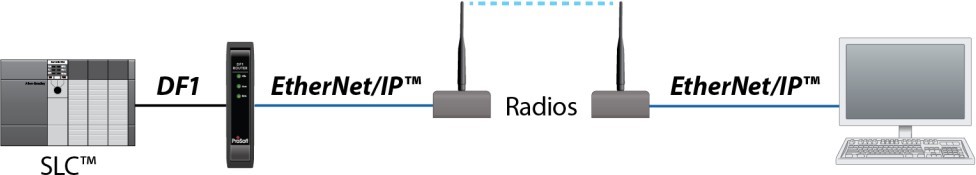

PLX51-DF1-MSG Schematic-4

Features and Benefits

  • DF1 Radio Modem with support for store and forward functions
  • Intelligent routing to ControlLogix® or CompactLogix™ from PLC-5®, SLC, MicroLogix controllers and SCADA systems
  • Direct-to-tag technology simplifies data mapping, reducing configuration time
  • Secure module configuration via on module switch
  • Can be used in a redundant ControlLogix system
  • Built-in packet analyzer for DF1 networks



Specifications

EtherNet/IP Description
Connector RJ45
Conductors CAT5 STP/UTP
ARP Connections Max 20
TCP Connections Max 20
CIP Connections Max 10
Communication Rate 10/100 Mbps
Duplex Mode Full / Half / Auto-Negotiate
Auto MDIX Yes
DF1 Description
Protocol DF1 Full Duplex, DF1 Half Duplex, DF1 Radio Modem
Baud Rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bits 8
Stop Bits 1
Error Detection CRC, BCC
Embedded Response Auto, On
Bridge Mode Mapping Max 20 routes
Slave Mode Mapping Max 20 routes
Slave Mode Message Support PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write, PLC-2 Unprotected Read, PLC-2 Unprotected Write, PLC-2 Unprotected Bit Write
Scheduled Tag Mode Message Support (Master) PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write

NOTE:  All products are pre-order items
