Industrial IoT Gateway

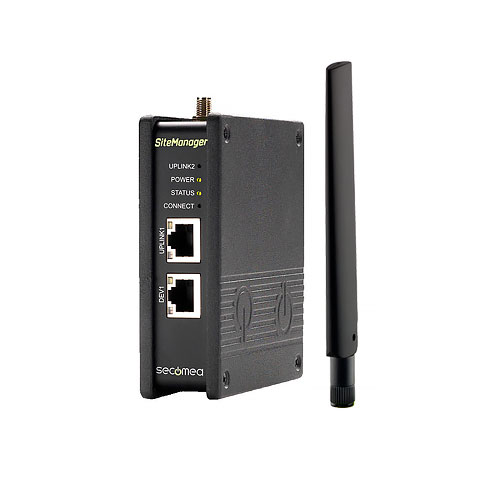

SiteManager 11xx/33xx

Industrial IoT Gateway

SiteManager 11xx/33xx

SiteManager is a security certified IIoT Edge Gateway in the Secomea Industrial Communications Solution programme that ensures unified, uninterrupted and secure access to remote industrial equipment.

The SiteManager 11xx/33xx series is a robust, DIN mountable industrial gateway that you install in machine control panels to provide remote access for on-demand, real-time servicing of industrial equipment. As an additional feature, the SiteManager is capable of data collection, which allows service engineers to perform detailed cloud analysis for predictive and preventive maintenance of connected equipment.

  • Description

Description

Secure Remote Access and Data Collection in One Device

SiteManager 11xx/33xx

SiteManager is a security certified IIoT Edge Gateway in the Secomea Industrial Communications Solution programme that ensures unified, uninterrupted and secure access to remote industrial equipment.

The SiteManager 11xx/33xx series is a robust, DIN mountable industrial gateway that you install in machine control panels to provide remote access for on-demand, real-time servicing of industrial equipment. As an additional feature, the SiteManager is capable of data collection, which allows service engineers to perform detailed cloud analysis for predictive and preventive maintenance of connected equipment.

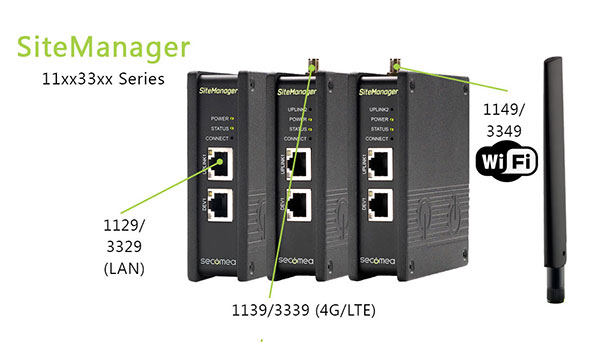

Secomea SiteManager 11xx/33xx-series

Easy to Set Up – Intuitive to Use

  • Built-in setup assistant
  • Single click configuration
  • DHCP-enabled
  • Alert capabilities between Devices and servers
  • Security certified and built-In firewall
  • Unique built-in troubleshooting functionality
  • Intuitive user experience

Architecture & Key Features

Connect multiple devices simultaneously

Connect up to 25 devices of all types of industrial equipment via Ethernet, Serial or USB ports, using the equipment’s native protocols (e.g. Modbus, PROFINET, EtherCAT; EtherNet/IP etc.).

Drag & drop SCADA tunneling setup

LogTunnel support provides static tunnel connections to a central SCADA system, which operates concurrently with other services, such as on-demand access and data collection module.

Easy & firewall friendly Internet access

Establishes access to the Internet through the firewall of the existing wired network infrastructure, and wirelessly by 4G/ LTE modem, or via WiFi.

Data Collection Module

Collects data from field devices via e.g. Modbus OPC UA or S7, and pushes relevant data to popular clouds such as Azure, AWS, EcoStruxure Machine Advisor, Secomea DCC etc

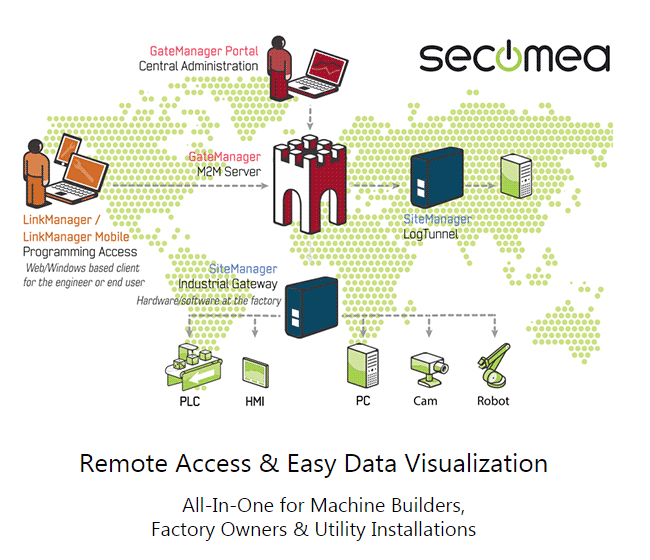

Remote access made easy with SiteManager from Secomea

Technical Specifications – Overview

Electrical Properties

  • 536 Mhz ARM Cortex A5 CPU
  • Input 12 – 24 V/DC, via screw terminals
  • Network Interfaces: 1 x 10/100 Mbit Ethernet (1 x UPLINK, 1 x DEV,) – RJ45 connection
  • 1 x USB 2.0 full speed (Host)
  • 1 x RS232 DB9 Serial port with full flow control
  • Power consumption: max 5W excl. any optional USB devices (Calculate with a total of 8W incl. USB devices)
  • 2 x digital input ports
  • 1 x output relay (max 0.5A), 1 x digital output open drain (max 0.2A)
  • 1139/3339 models only: Integrated broadband modem with external standard polarity female SMA connector and Mini-SIM push-pull slot
  • 1149/3349 models only: Integrated WiFi module with 2,4 GHz (802.11 b/g/n) support and external female RP-SMA connector

Architecture & Key Features

Connect multiple devices simultaneously

Connect up to 100 devices of all types of industrial equipment via Ethernet, Serial or USB ports, using the equipment’s native protocols (e.g. Modbus, PROFINET, EtherCAT; EtherNet/IP etc.).

Persistent store-and-forward database

Integrated Flash memory extends the RAM based store-and-forward database to ensure data integrity for not only loss of Internet access, but also power-loss.

The offline period can be further extended by inserting a SD-Flash card.

Intelligent Data Collection Module

Collects data from field devices via e.g. Modbus OPC UA, CIP or S7, and pushes relevant data to popular clouds such as Azure, AWS, EcoStruxure Machine Advisor, Secomea DCC etc.

Easy & firewall friendly Internet access

Establishes access to the Internet through the firewall of the existing wired network infrastructure, and wirelessly by 4G/ LTE modem, or via WiFi.

Drag & drop SCADA tunnelling setup

LogTunnel support provides static tunnel connections to a central SCADA system, which operates concurrently with other services, such as on-demand access and data collection module.

3 port integrated managed switch

3 DEV/LAN ports configurable as bridged (normal switch) or individually managed ports with separate DHCP servers.

Industrial specifications

Secomea SiteManager hardware gateways are rugged aluminum devices designed with industrial specifications. They support all features required for operating as secure access gateways for industrial installations – from small machines to complete production lines and whole factories. All SiteManager hardware gateways are certified for global installations.

Flexible connectivity

The SiteManager hardware gateways support remote access to any type of physical communication port of industrial devices. They also support multiple Internet access options via USB adapters. This means any SiteManager can obtain Internet access via LAN, cellular or WiFi networks.

SiteManager Hardware Models CPU Uplink Connection Options (Integrated) Device Agents SDcard Flash Storage Expansion DEV Ports Data Collection Module (DCM)
SiteManager 1129 / 3329 ARM Cortex A5 5 / 25 1
SiteManager 1139 / 3339 ARM Cortex A5 5 / 25 1
SiteManager 1149 / 3349 ARM Cortex A5 5 / 25 1
NOTE:  All products are pre-order items
